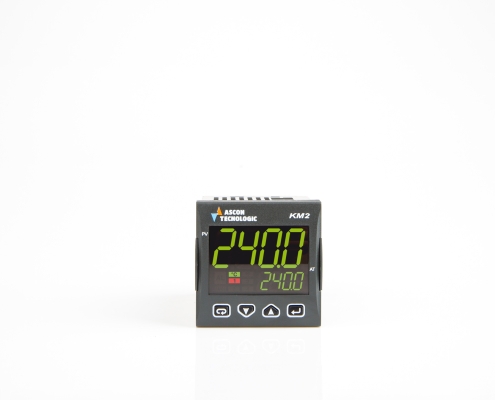

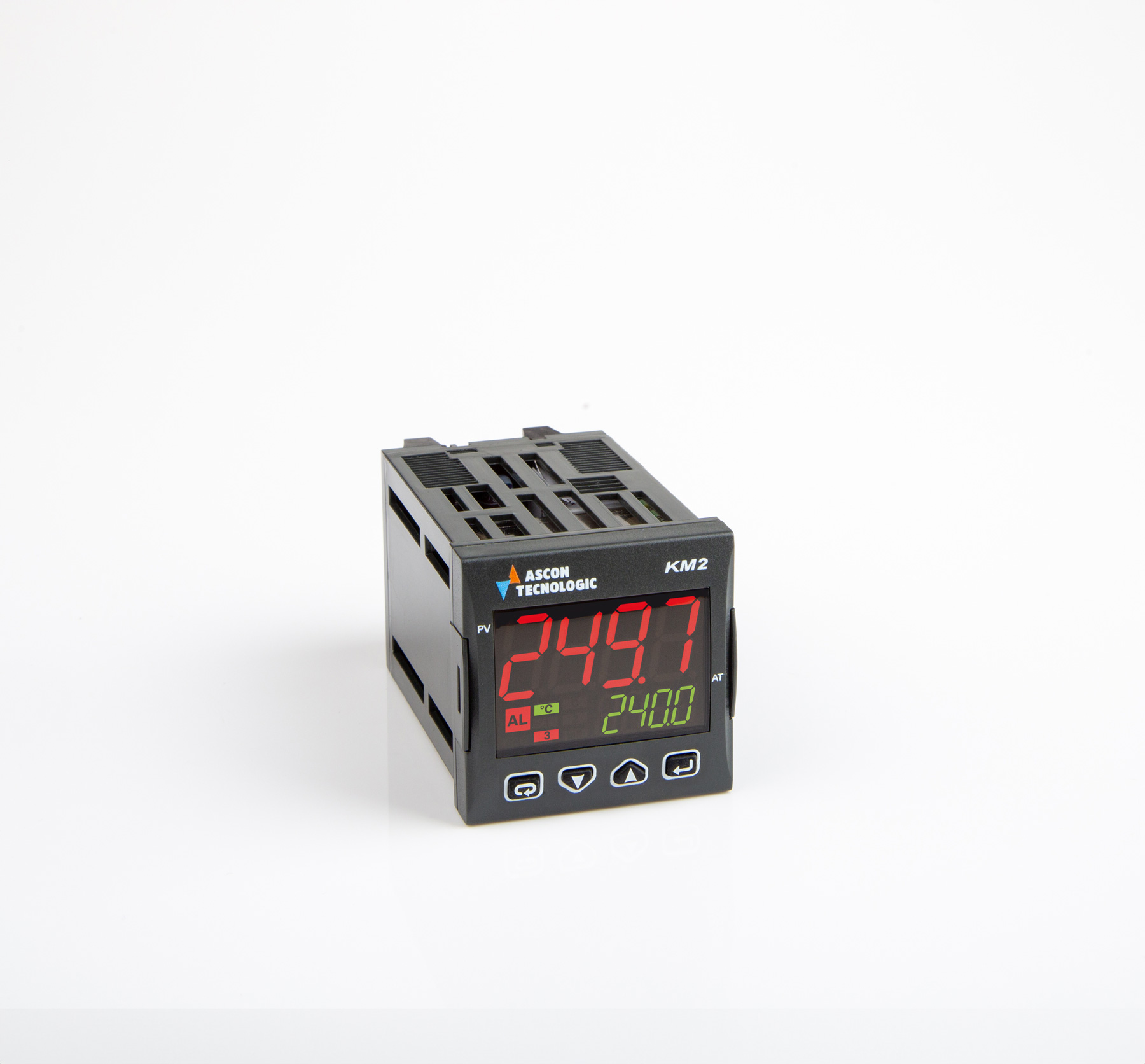

This controller combines all the existing functions on the Kube line with the Heater Break Down Alarm (HB) function which allows you to keep the condition of the load under control and signal if a fault occurs in the heating element.
It is the ideal instrument to put on the shelf as it is the most complete in terms of resources on board: extended switching power supply and universal input.
TECHNICAL SPECIFICATIONS:
Controller 48×48 mm
U = Power supply: 24… 240 Vac/Vdc Switch
C = Input: TC-RTD-V-mA-mV+DI 1
R = Out1: Relè 4A-SPST
R = Out2: Relè 2A SPST
D = Out3: DI2/Out3 x PWS
H = Heater Breaker: Available
S = Serial communication: RS485 Modbus

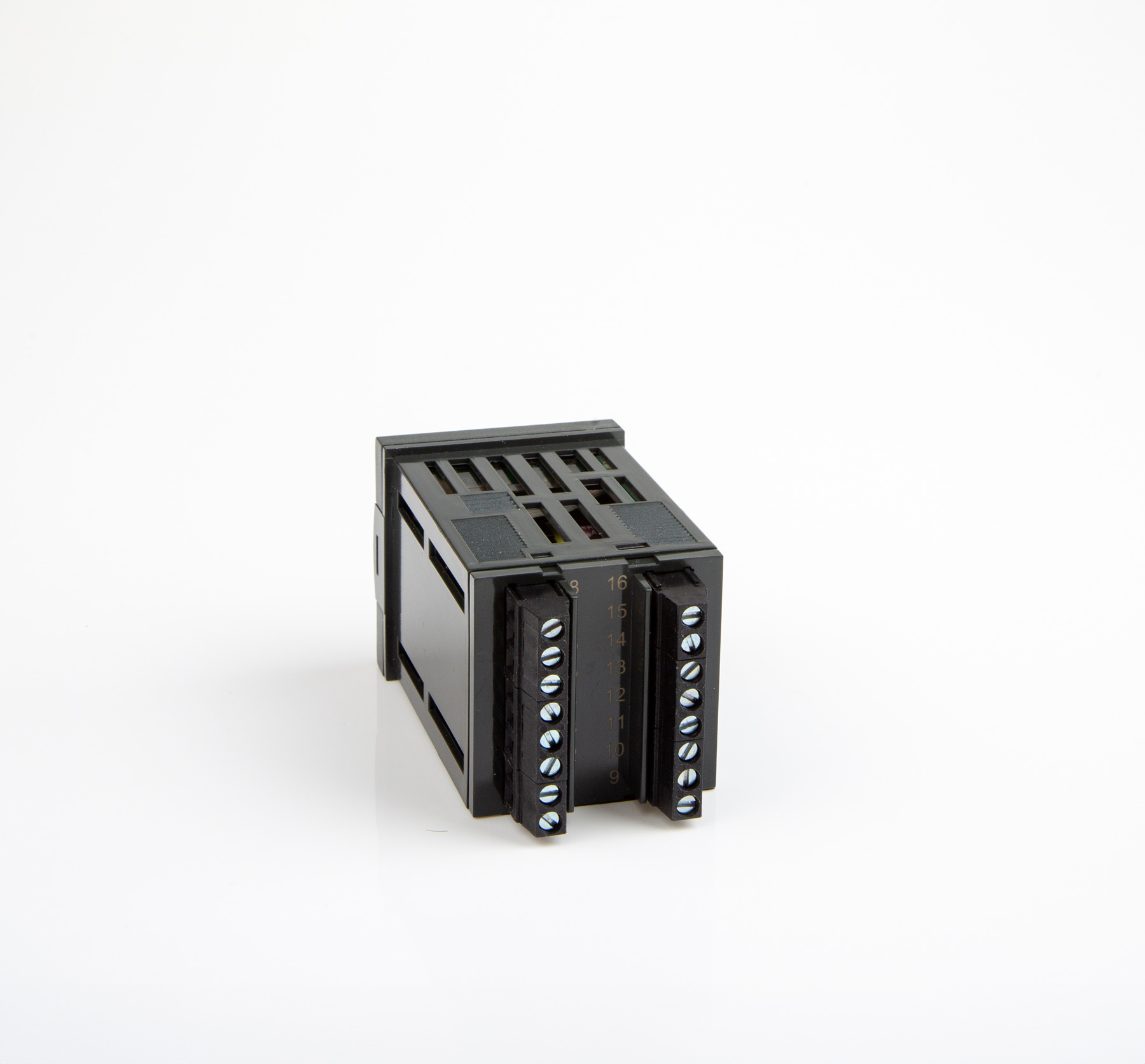

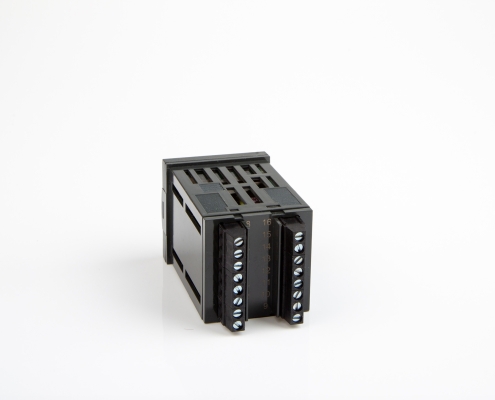

– = Connection: Fix screw type
